FlexShuttle
Buffering > Storage > Supply

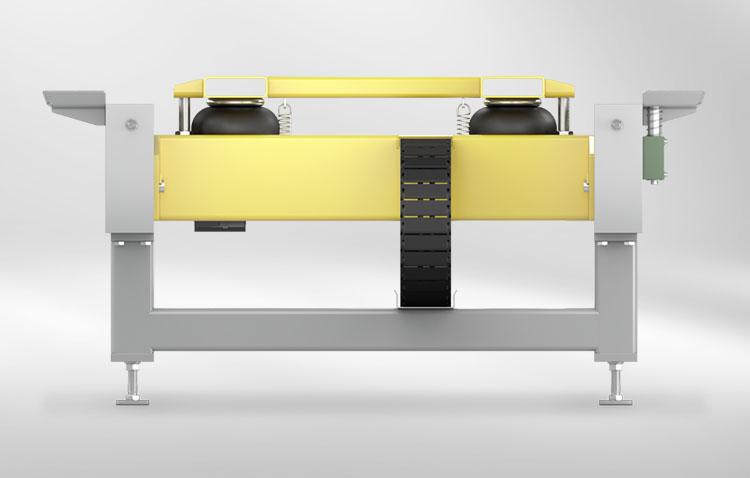

The Flexshuttle transports goods on an integrated carriage. Robustly designed profiles and bearings enable the transport of large loads. The servo drive of the carriage enables high transport performance and precise positioning with low noise levels. Suitable for pallets, workpiece carriers, grid boxes with single feet or other conveyed goods that are difficult to transport on other conveyors due to their contact surface.
Suitable for:
- Pallets
- Box pallets
- Steel tanks
- And much more…
The advantages at a glance
- High throughput: shuttle speed up to 60 m/min
- Quiet and fast: The servo drive is powerful and very quiet in operation due to the toothed belt drive
- Energy-efficient: Seamless pre-clocking in block accumulation principle with only one drive motor for several parking spaces
- Gentle: even goods sensitive to vibrations are transported safely
- Space-saving: Optimum utilisation of the storage or buffer section through flexible positioning
- Modular: Infinitely expandable due to modular design, easy integration into conveyor lines
- Mature: Low maintenance costs due to a technically mature and simple design
- Durable: Robust welded construction and low-wear impellers
Specifications
The following guide values apply to standard conveyors, in internal ambient conditions and for defined applications and goods conveyed.
| Length (per conveyor, fully assembled) | up to 6.000 mm |
| Width (freely selectable) | from 800 mm |
| Overall height | from 400 mm |
| Speed | up to 60 m/min |
| Load capacity per plot | up to 3.000 kg |
| Possible bearing principles | “LiFo” oder “FiFo” |
| Drive (IE3/4), reversible | Fabrikat SEW EuroDrive |
